Minor Diameter Bore NBH2084
- Home
- Products
- CNC Precision Milling Arbor
- Minor Diameter Bore NBH2084
NBH
Inquiry Item
Product specifications
NBH2084 Minor Diameter Bore
| Type No. | Processing Inner Dia. |
Type No. | Processing Inner Dia. |
|---|---|---|---|
| RB-NBH2084 | φ8 ~ φ280 | BT40-NBH2084 | φ8 ~ φ280 |
| NT30-NBH2084 | φ8 ~ φ280 | BT50-NBH2084 | φ8 ~ φ280 |
| NT40-NBH2084 | φ8 ~ φ280 | SK40-NBH2084(DIN69871) | φ8 ~ φ280 |
| NT50-NBH2084 | φ8 ~ φ280 | SK50-NBH2084(DIN69871) | φ8 ~ φ280 |
| MT4-NBH2084 | φ8 ~ φ280 | MT5-NBH2084 | φ8 ~ φ280 |

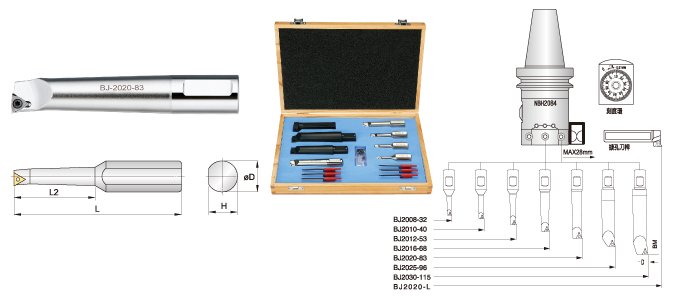

φ20 NBH2084 Precision boring tool bar box set
| Type No. | Applicable Insert | Processing Inner Dia. |
Dimension | Accessory | ||||
|---|---|---|---|---|---|---|---|---|
| D | d | L1 | H |  |
 |
|||
| BJ2008-32 | TBGT060102L | φ8 ~ φ11 | 20 | 75 | 32 | 18 | FC5-2010 | T6 |
| BJ2010-40 | TBGT060104L | φ10 ~ φ13 | 20 | 75 | 38 | 18 | FC5-2010 | T6 |
| BJ2012-53 | TPGH090202L | φ12 ~ φ17 | 20 | 85 | 48 | 18 | FC5-2010 | T6 |
| BJ2016-68 | TPGH090204L | φ16 ~ φ21 | 20 | 100 | 66 | 18 | FC5-2010 | T6 |
| BJ2020-83 | TPGH110302L/04L | φ20 ~ φ130 | 20 | 115 | 83 | 18 | FC5-2010 | T6 |
| BJ2025-96 | TPGH110302L/04L | φ25 ~ φ135 | 20 | 128 | 96 | 18 | FC5-2010 | T6 |
| BJ2030-115 | TPGH110302L/04L | φ31 ~ φ140 | 20 | 147 | 115 | 18 | FC5-2010 | T6 |
| BJ2020-L | TPGH110302L/04L | φ40 ~ φ280 | 20 | 97 | 18 | 18 | FC5-2010 | T6 |
