SDC Slim Chuck

SDC Slim Chuck
Inquiry Item
Inquiry
Prev
Next
Product specifications
  • Product Specification

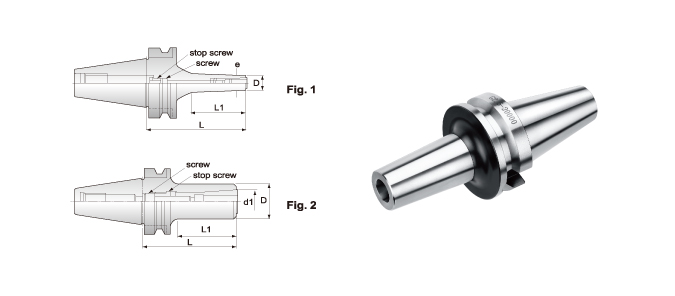

TYPE NO. Gripping Range L D Fig D
BT30-SDC6-60 2-6 60 13 1 DC6
BT30-SDC6-90 2-6 90 13 1 DC6
BT40-SDC6-60 2-6 90 13 1 DC6
BT40-SDC6-90 2-6 90 13 1 DC6
BT40-SDC6-120 2-6 120 13 1 DC6
BT40-SDC6-150 2-6 150 13 1 DC6
BT40-SDC8-90 3-8 90 22 1 DC8
BT40-SDC8-120 3-8 120 22 1 DC8
BT40-SDC10-90 3-10 90 28 2 DC10
BT40-SDC10-120 3-10 120 28 2 DC10
BT40-SDC12-70 3-12 70 34 2 DC12
BT40-SDC12-90 3-12 90 34 2 DC12
BT50-SDC10-110 3-10 110 28 2 DC10

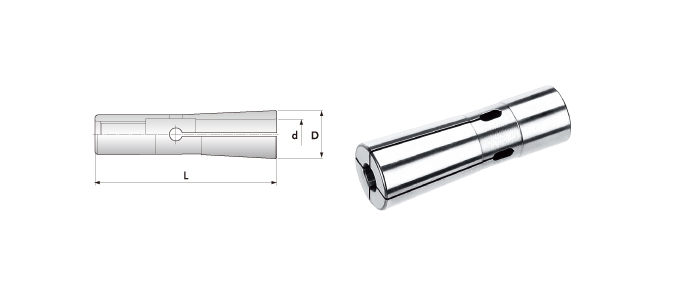

SDC COLLET (for end mill)

MODEL NO. L  D
SDC 6  3, 4, 6 36 9.6
SDC 8  3, 4, 6, 8 45 15
SDC 10  3, 4, 6, 8, 10 52 19.1
SDC 12  3, 4, 5, 6, 8, 10, 12 60 22
